Features

Highly stressed parts such as squeegee and brush head are made from high-quality aluminium

• Robust machine concept for tough working conditions with low failure rates.
• Also developed for applications in harsh conditions.

Brush contact pressure can be adjusted in 2 stages

• Can be manually increased from standard 40 to 68 kilogrammes if required.
• Lower contact pressure for lighter soiling or on sensitive floors.
• Higher contact pressure for stubborn dirt or for decoating.

Efficient and powerful 300 Watt traction motor

• Helps to effortlessly tackle inclines and saves the operator a great deal of effort.
• Driving speed can be adjusted via accessible potentiometer.

Coloured, clearly visible operating elements

• Colour-coded operating elements simplify operation and shorten the training time.

Clever Home Base system

• Options to attach manual cleaning equipment such as hooks, containers, mop, etc.

Inexpensive machine from the Classic range

• Outstanding value for money.

Scope of Supply

• Motor, Battery
• Powerful traction drive
• Disc brush
• 2-tank system

Description

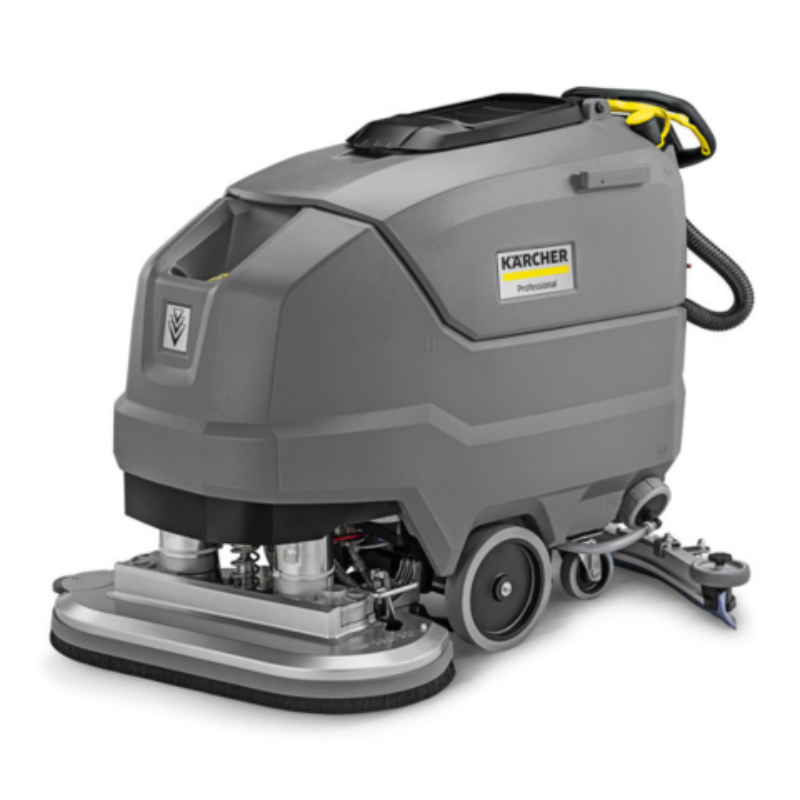

Our hand-guided scrubber drier BD 80/100 W Bp Classic impresses with an excellent overview, superb equipment, robust materials and efficient cleaning performance. As the first battery powered walk-behind machine from the classic line, it has a powerful traction drive, which climbs slopes effortlessly. Components, which are exposed to extreme stress in tough working conditions, such as squeegee and disc brush head, are made from solid die-cast aluminium. With 80 cm working width, a 100 litre tank and maximum transport and cleaning speed of up to 5 km/h, which can be continuously adjusted, the machine achieves area performances of up to 4800 m². In the case of very stubborn dirt or for decoating, the brush contact pressure can be increased at any time from 40 to 68 kilogrammes. The tried-and-tested and simple operating concept with colour-coded operating elements and the spring clip on the rear of the handle, as well as the Home Base adapter for carrying manual cleaning equipment, offer the user great comfort.

Applications

• Ideal for maintenance cleaning in retail trade, DIY stores, shopping centres, industry, at airports.

Technical specifications

Working width of brushes: 810 mm

Working width, vacuuming: 1090 mm

Tank of fresh/dirty water: 100 / 100 l

Theoretical area performance: 4050 m²/h

Practical area performance: 2115 m²

Brush rotational speed: 180 U/min

Brush contact pressure: 28.2 – 47.9 / 53 – 90 g/cm² / kg

Battery: 24 V

Battery runtime: max. 5 h

Sound pressure level: 63 dB(A)

Drive type: Battery

Drive: Traction motor
